Project at SourceForge: http://sourceforge.net/projects/hwmps

Thread on PcTuner Forum about project development (in Italian): Hardware Monitor and Protection System basato su PICmicro

Project Specification (in Italian, Rev. 0.3): PDF File

Project Presentation (in Italian, Rev. 1.0): PDF File

HWMPS Firmware 1.0 RC1: Download at SourceForge

Electrical Schematic (full size, Rev. 1.0 RC5): GIF File

Printed Circuit Board (A4 Paper, Rev. 1.0 RC5): PDF File

Printed Circuit Board with Components Displacement (full size, Rev. 1.0 RC5): GIF File

Partlist (Rev. 1.0 RC5): Text File

Distinta Componenti HWMPS (in Italian, Rev. 1.0 RC5): PDF File

Descrizione del funzionamento e del dimensionamento del DAC del progetto HWMPS (in Italian, Rev. 0.2): PDF File

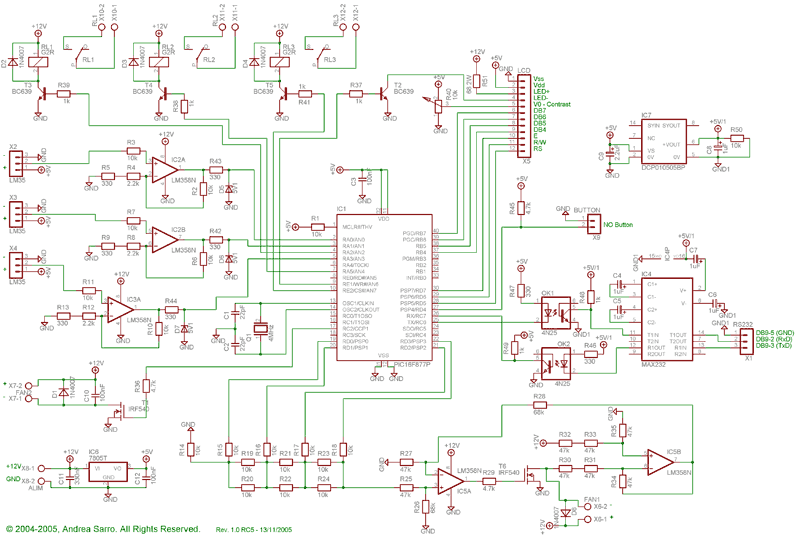

Electrical Schematic (Preview):

Electrical Schematic

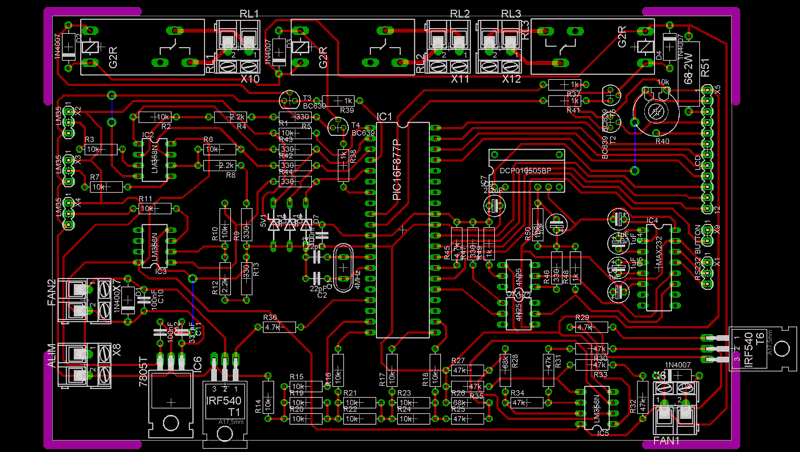

Printed Circuit Board with Components Displacement (Preview):

Printed Circuit Board
